Curret available ver. is U4HS

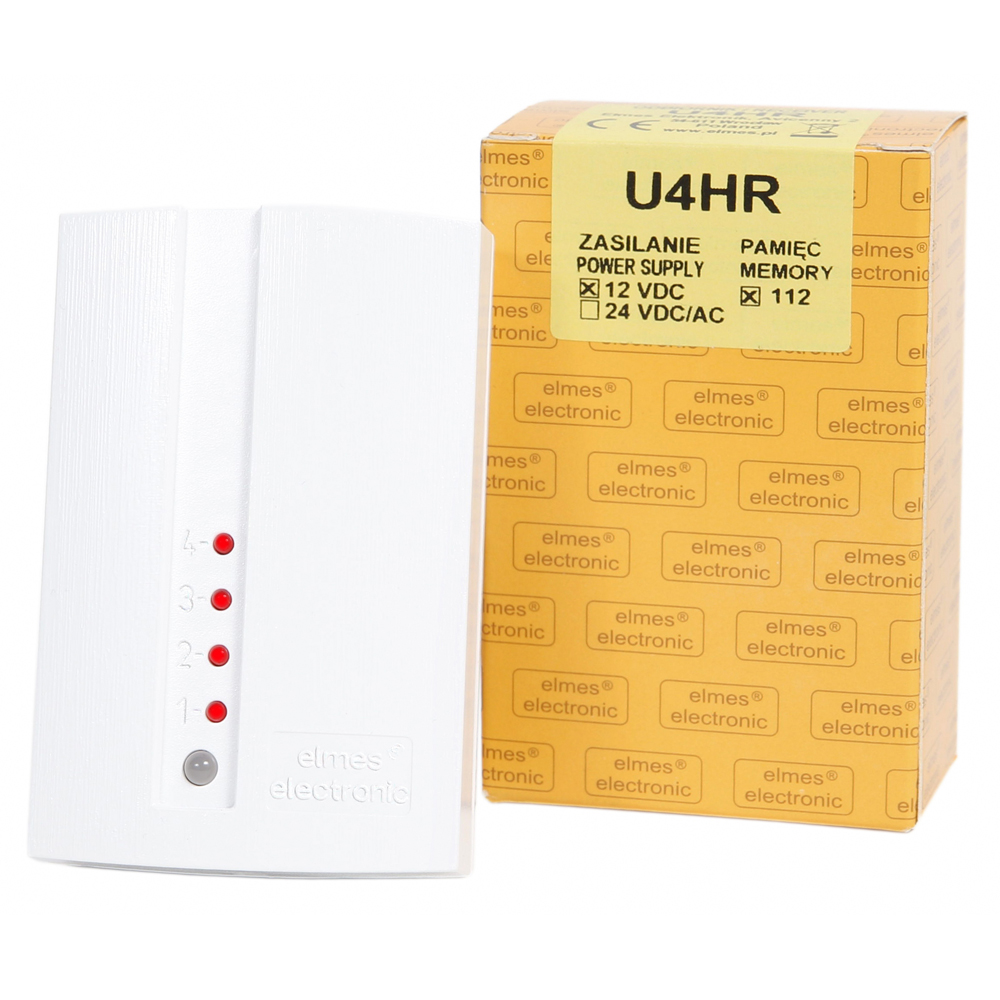

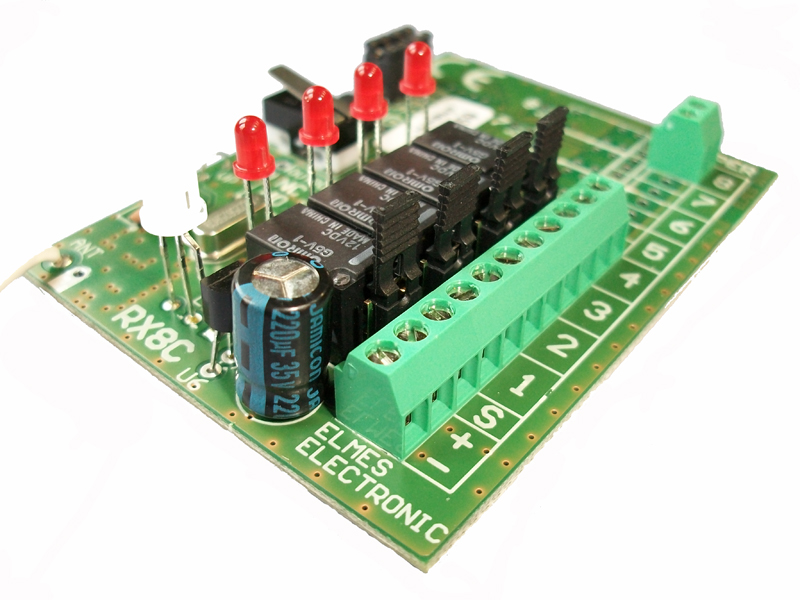

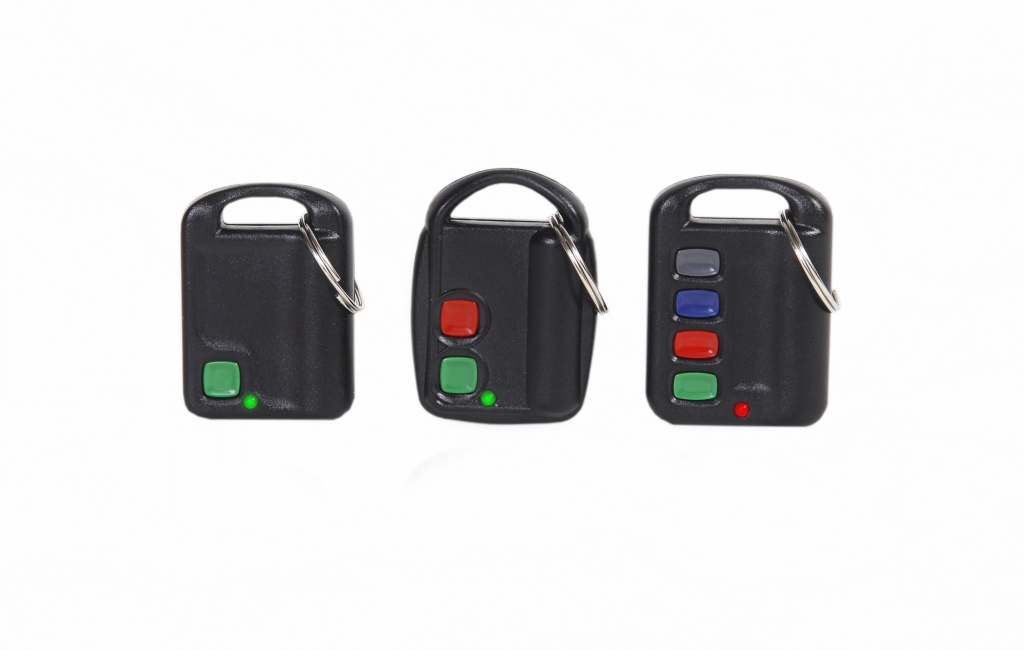

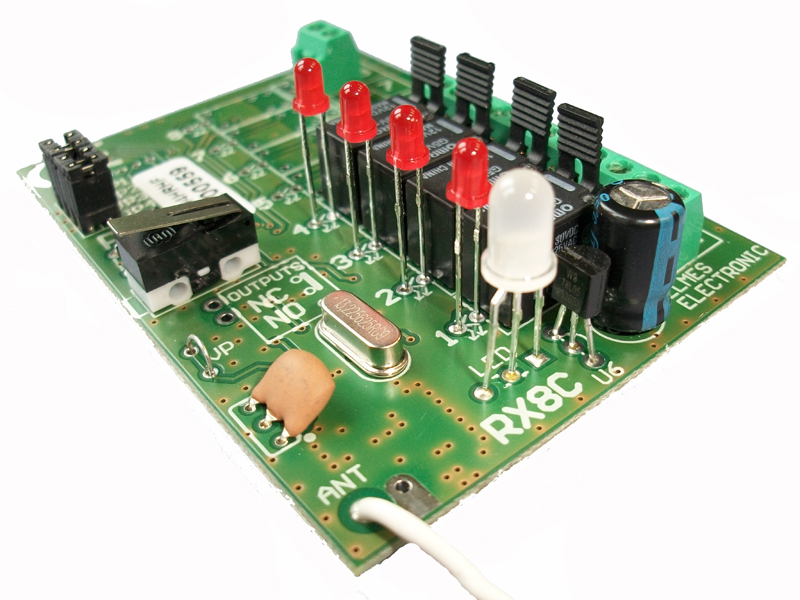

The set consists of four relay outputs receiver and one hand-held transmitter designed for use in radio remote control and access control. The system uses KEELOQ (*) dynamic code technology and the receiver operates with all Elmes Electronic made 433,92MHz band transmitters and wireless detectors.
Operation.
Activating transmitter stored in receiver memory results in setting on respective relay output. Depending on user programming, as described in sub-close 2 of the programming procedures, two modes of the receiver’s relay outputs operation are possible: temporary output set on lasting from 0.5s up to 4h on each signal received from transmitter and bistable outputs set on in on-off (latched) mode activated by consecutive signals received from the transmitter

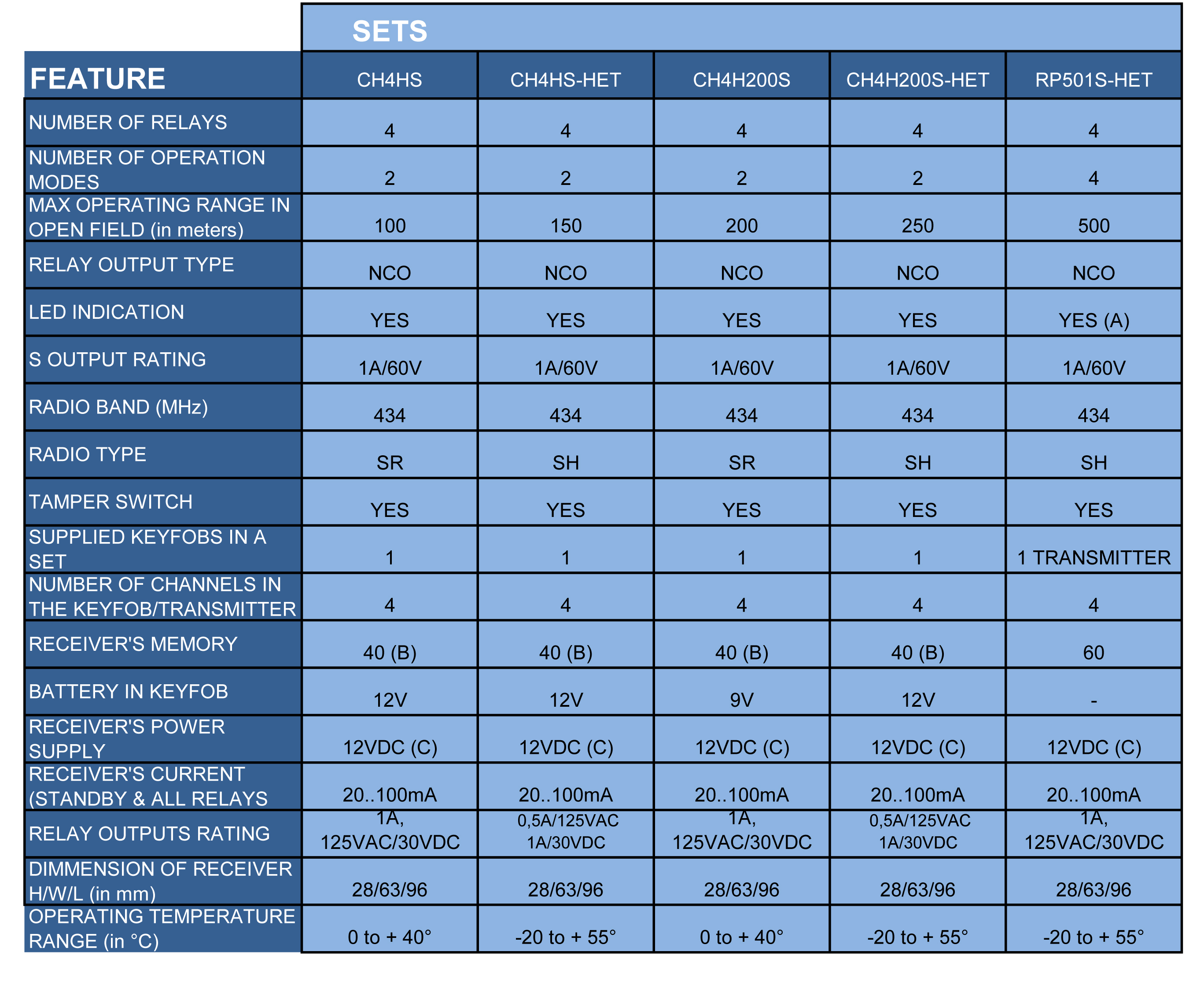

- 33,92MHz band receivers and transmitters,
- Four galvanic separated relay output channels,
- rated 1A/30VDC or 0,5A/125VAC; Rec. CH4H outputs rated 1A/30VDC or 1A/120VAC,
- Outputs pulse operating mode timing: 0,25 second to 4 hours,
- Receiver power supply: 12VDC, 20mA standby, 120mA max,
- unit can work as a mini control panel,
