AN200HS-HET, UMB100HS-HET, UMB100HR-HET
All above listed products include the same UMB100HR-HET receiver model featuring:
- One galvanic separated relay output with NC/NO terminals,
- One OC (open collector) transistor type output for acoustic indication of relay output switch-over,
- Two color LED indicating state of the relay output,
- Comfortable wide range of AC and DC power supply voltages,
- Highly sensitive and selective superhet receiver module,

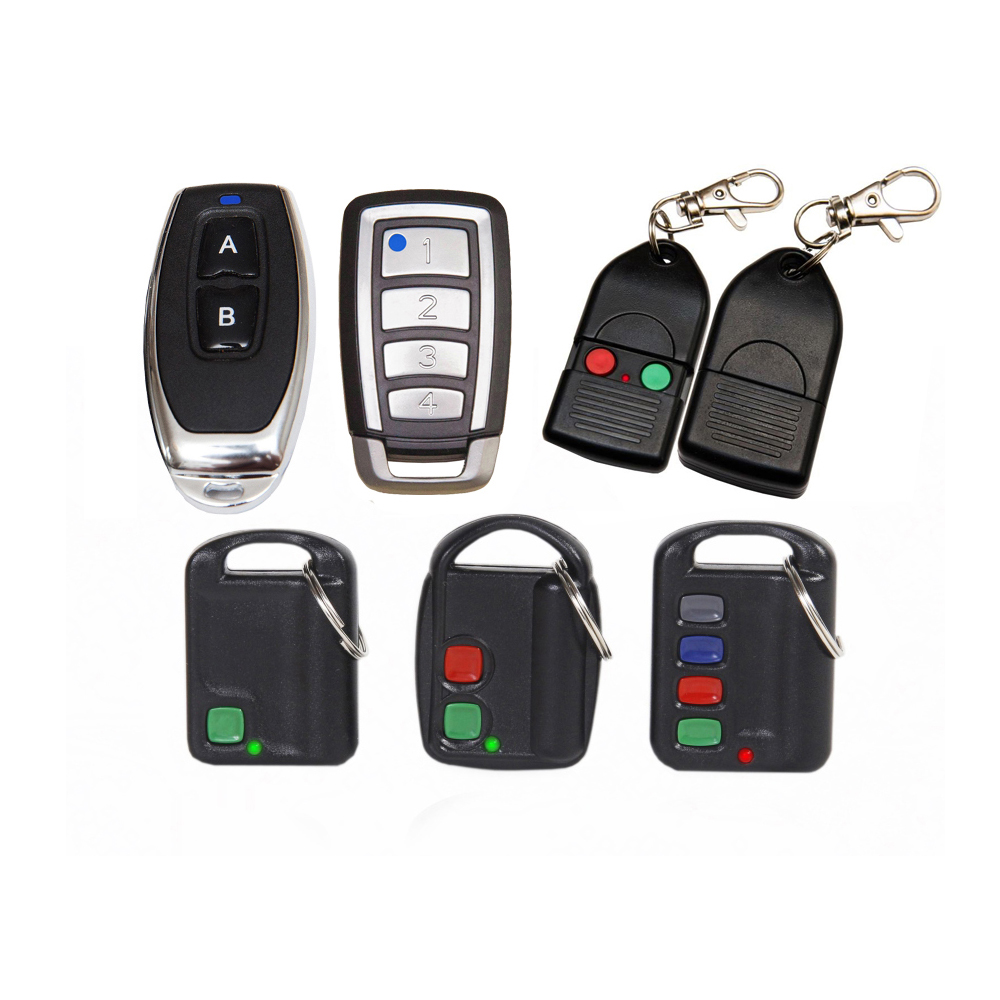

- Up to 112 hand and keyfob remote control transmitters (further referred to as “remotes”) memory capacity,
- KEELOQ transmission dynamic encoding system.

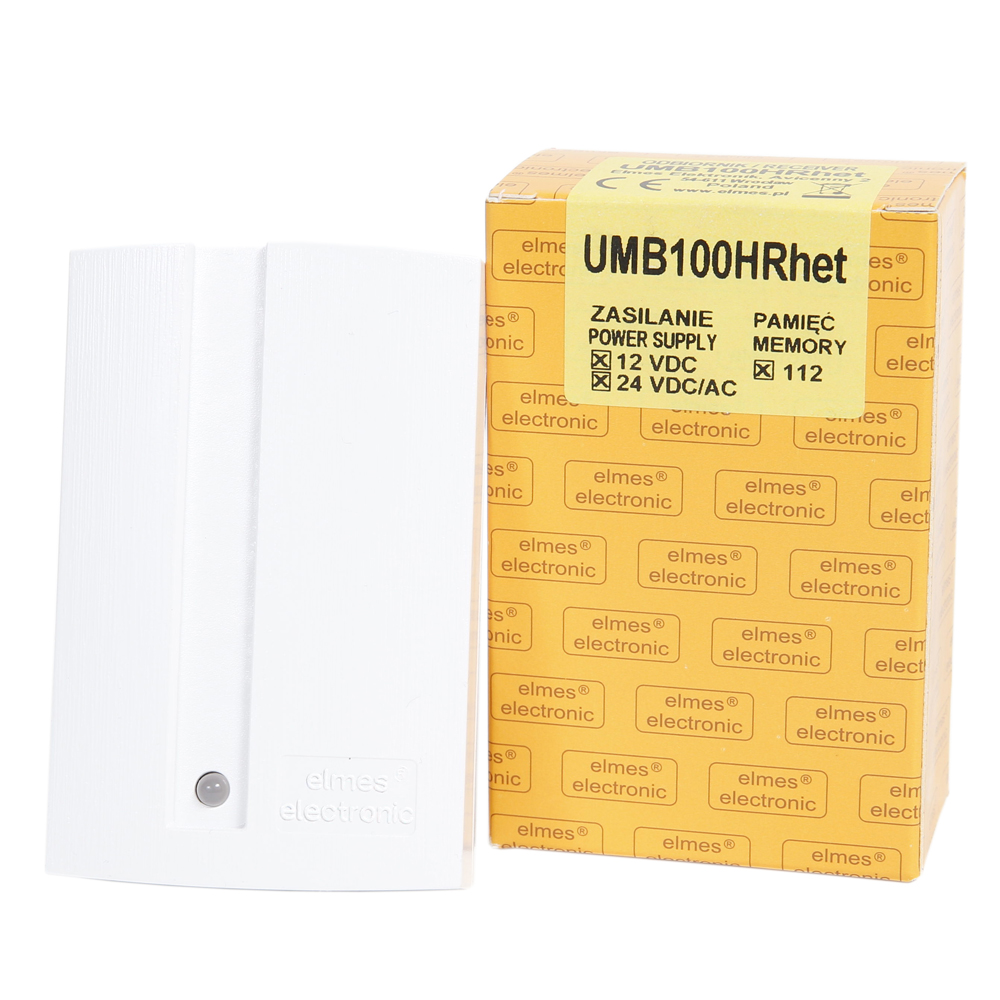

- UMB100HRhet - One channel receiver, 12-24V/112 memory, superhet.
- memory 112 transmitters,
-
power supply: 10..40 VDC or 13,5..29 VAC,
- Opperatings modes:
- switch on relay by one transmitter button, second transmitter button switch off relay,
- receiver relay switched on as long as we hold transmitter button (winch mode),
- switch on, switch off,
- switch on for a limited time,
