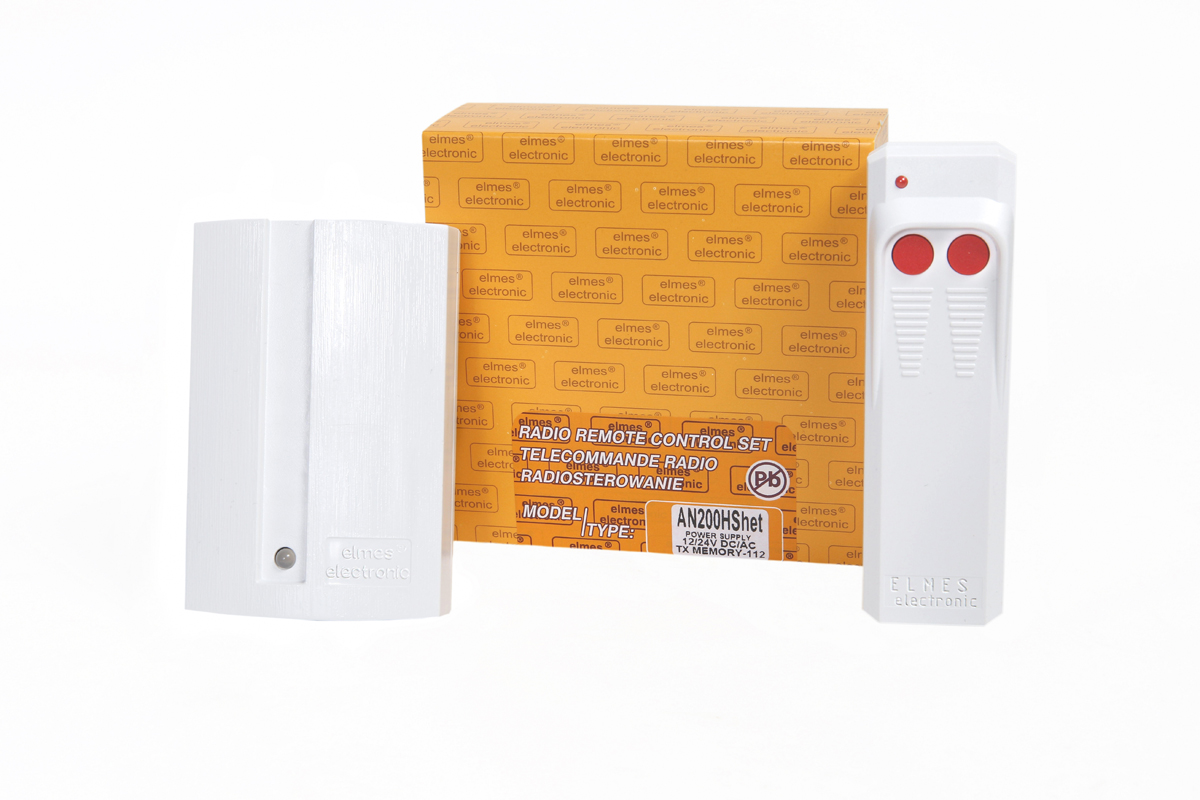

Currently, our offer has been extended by new U1HSL set, as continuation of AN200HS model. The new set consists of one hand transmitter AN200HT and a new small superhet U1HR receiver. The receiver features excellent sensitivity and selectivity and complies with latest EU relevant standards concerning SRD (Short Range Devices) remote control products. It features a set of useful functions, such as:
Receiver operating modes
Receiver relay output can operate in one of the following modes:
- Key fob button sets on output for programmed time lapse. Next use of the same button, while the output is set on, prolongs time lapse.
- Key fob button alternately sets receiver output on and off.
- Receiver output is set on for as long as key fob button is pressed.
- One key fob button sets output on while other button sets output off. This mode requires at least 2 button key fob transmitter.
Signalling Output S
The receiver provides signalling output S (Open Collector type) rating 1A/60VDC for signalling every channel output set on/off, allowing connection of external siren, buzzer or light strobe. It signals also key fob buttons pressed.
LED Indication
The receiver is equipped with bicolour indication LED. The LED lights green signalling receiver output set on and lights red when the output is off.
KEELOQ Encoding System
In the system, newly encoded control signal is generated and sent each time transmitter button is pressed. Receiver monitors code changes and responds to new code signals only. Once received code will not be accepted second time making intercepted code useless.
Transmitter Memory
The receiver can operate with up to 112 key fob/ hand transmitters.
