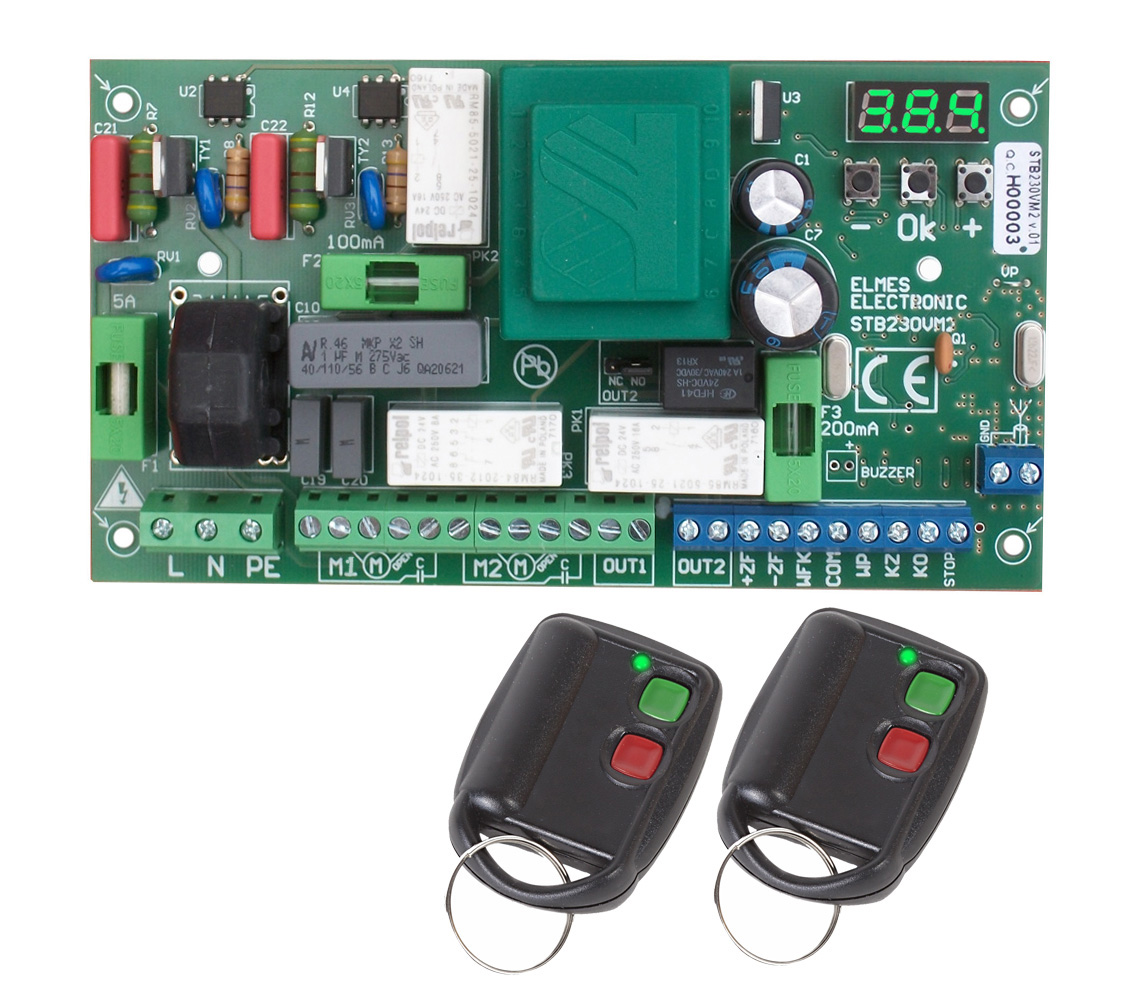

The unit is designed to control automated swing and slide gates with installed 230VAC motor/s allowing bidirectional operation. Functions and features of STB230VM2 are as below:

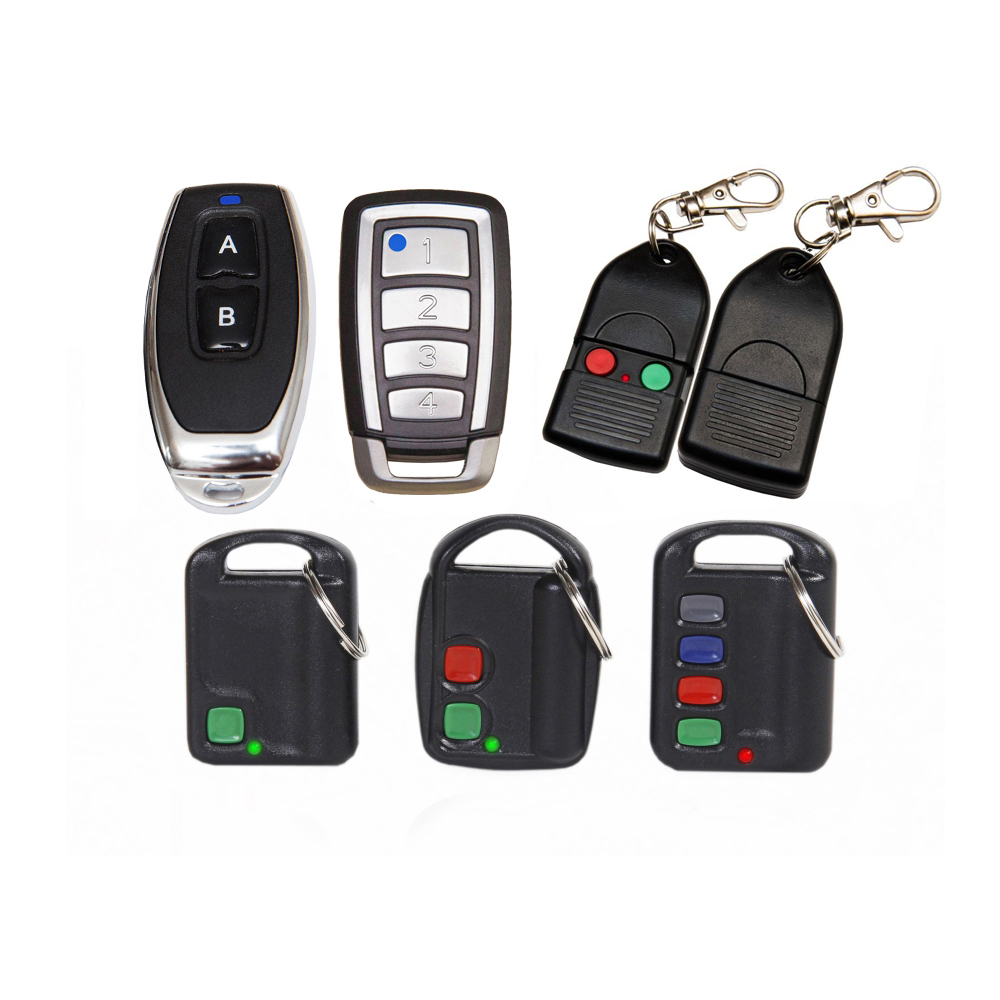

· Use of hand held remote transmitters with Keeloq® rolling code allowing high security of gate control;
· Operation with up to 448 Elmes Elektronik made remotes for multi user parking application;
· Independent motor force adjustment for each leaf of gate;
· Remote control of gate with one or two buttons remote, or by mono type wired wall switch;
· Manual, auto-close, two types of “parking” functions and walk-in partial opening operation modes;
· Auto-close function after programmable PAUSE time (1 to 255 seconds);
· Operation with end of line (EOL) switches NO or NC type (normally open or normally closed);
· Operation with photocell NC type (normally closed output);
· Automatic gate opening after photocell obstacle detection while gate closing;
· Security input STOP for immediate gate movement blocking;
· Warning (flashing) or courtesy lamp output;
· Universal relay output OUT2 NO/NC type for electric lock control, or any other application,
controlled by separate remote transmitter button.
Security input STOP. Activation of input STOP in gate opening as well as closing manoeuvres stops the gate movement.
For as long as the input is activated (disconnected from COM input) the gate remains inoperable.
SPECIFICATION
· Power supply 230VAC with maximum power output 6VA;
· Maximum motor leaf power: 500W + 500W;
· Lamp output OUT1 unpowered, galvanic separated NO type, rated 16A/250VAC, pulse timed 1 to 999 seconds;
· Output OUT2 unpowered, NO or NC type jumper selectable,
galvanic separated, rated 1A/240V/30VDC,
pulse timed 0.5 to 127 seconds, or on/off latched type;
· Photocell fused power output 24VDC, rated150mA maximum;
· Photocell NC (normally closed) type detection input;
· Emergency input STOP, NC (normally closed) type;
· End of line (EOL) switches inputs, NO or NC type (normally open or normally closed);
· Motor rotation time programmable from 1 to 255 seconds common for open/close;
· Programmable PAUSE time from 1 to 255 seconds;
· Superhet receiver suitable for 433,92MHz radio band;
· Operation temperature range: - 20C up to +50C;
· Controller board dimensions (l/w/h): 165/90/45 mm;
Placement of unit installation holes for screws: 4 x ø=3mm 153 x 75 mm
